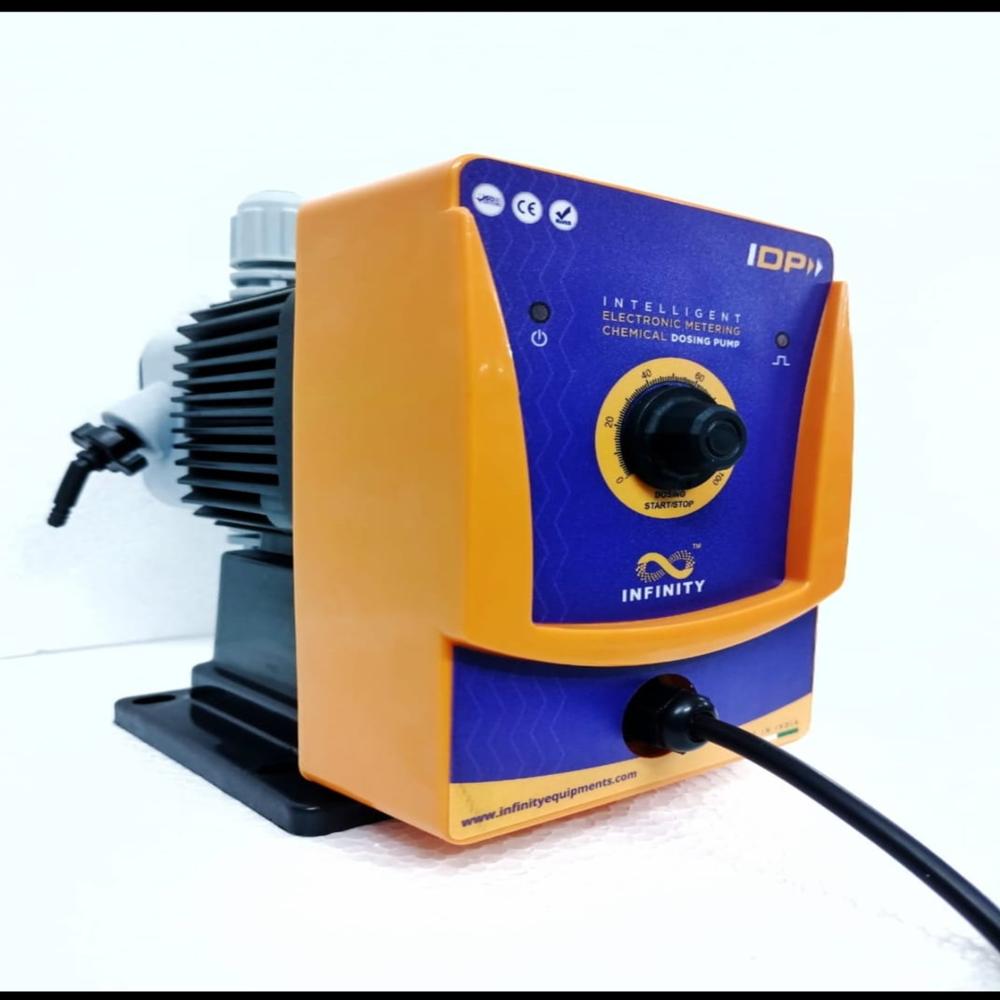

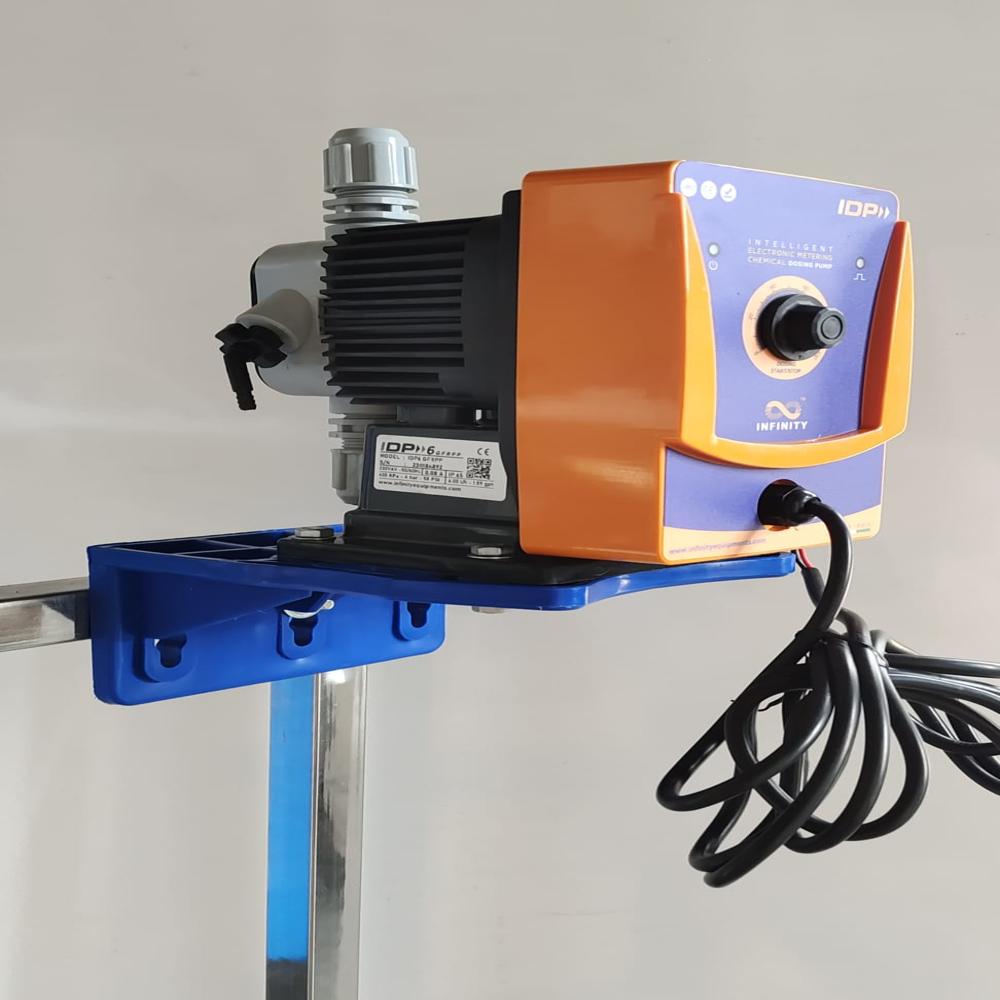

INFINITY DOSING PUMP IDP 6

About INFINITY DOSING PUMP IDP 6

Infinity INFIDOSE Industrial Dosing Pump is a premium-quality, precision-engineered chemical metering pump designed for accurate and reliable dosing of chemicals in water treatment, industrial processes, and chemical applications.

Manufactured in India using high-strength, corrosion-resistant materials, this dosing pump ensures zero leakage, long service life, and consistent performance even under demanding operating conditions.

The pump is suitable for dosing acidic, basic, and aggressive chemicals and is available in multiple models and series to meet varying flow and pressure requirements. It features a robust diaphragm mechanism, user-friendly controls, and advanced safety features, making it ideal for continuous industrial operation.

Key Specifications

• Brand: Infinity

• Series: IDP / STAR / PLUS / INFIDOSE PRO

• Operating Type:

  • Analog (Knob Operated)

  • Digital Display (High Accuracy)

• Dosing Capacity: 0.2 21 LPH

• Maximum Operating Pressure: Up to 7 Bar

• Stroke Rate: Up to 400 SPM

• Power Supply: 230V AC 35%, 50 Hz

• Power Consumption: 30 Watts

• Ingress Protection: IP65

• Sound Level: < 60 dB

• Electric Safety Class: Class-H

• Plunger Material: SS 304

• Diaphragm Material: PTFE

• Tube Size: 6/4 mm

• Country of Origin: Made in India

Material of Construction (Wetted Parts)

• PP Version:

  • Head & Injection: PP GF / N GF

  • Seal: NBR

  • Diaphragm: PTFE

• PVDF Version (HA Series):

  • Head & Injection: PVDF

  • Seal: VITON

  • Diaphragm: PVDF

Suitable for low, medium, highly acidic, and basic chemical solutions.

Special Features

• Zero leakage diaphragm design

• High accuracy dosing with stable flow

• LED / Digital display for easy operation

• Auxiliary output relay for automation integration

• Low-level sensor & dry-run protection (PLUS & PRO series)

• Glass ball double NRV for long life

• Inbuilt auto reset fuse & air release valve (ARV)

• Wide voltage operating range (180280V)

• CE & RoHS compliant

• Epoxy-coated microprocessor PCB for durability

• Pumps tested at 9 bar back pressure

Applications

• Water & Wastewater Treatment Plants

• Reverse Osmosis (RO) Systems

• Drinking Water Disinfection

• Chemical Industries

• Pharmaceutical & Medical Applications

• Swimming Pools

• Laboratories & Analysis

• Mineral Water & Beverage Plants

• Liquid Waste Management

Available Models

• IDP 1.5 / IDP 3 / IDP 6 / IDP 10

• HA (PVDF) Versions Available

• PLUS & PRO Series for Automatic Dosing

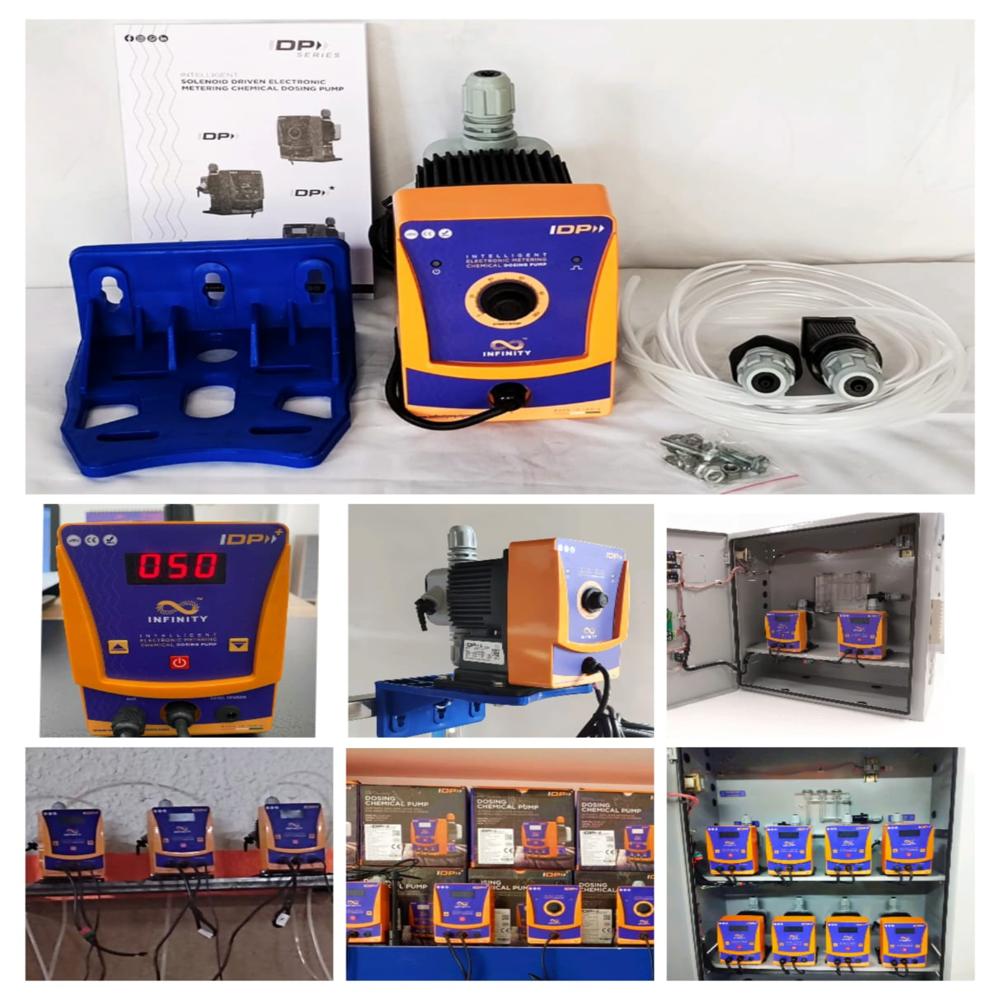

Scope of Supply

• Chemical Dosing Pump

• Suction Filter with Foot Valve

• Injection Check Valve

• 3 Meter Suction & Discharge Tubing

• Operation & Maintenance Manual
