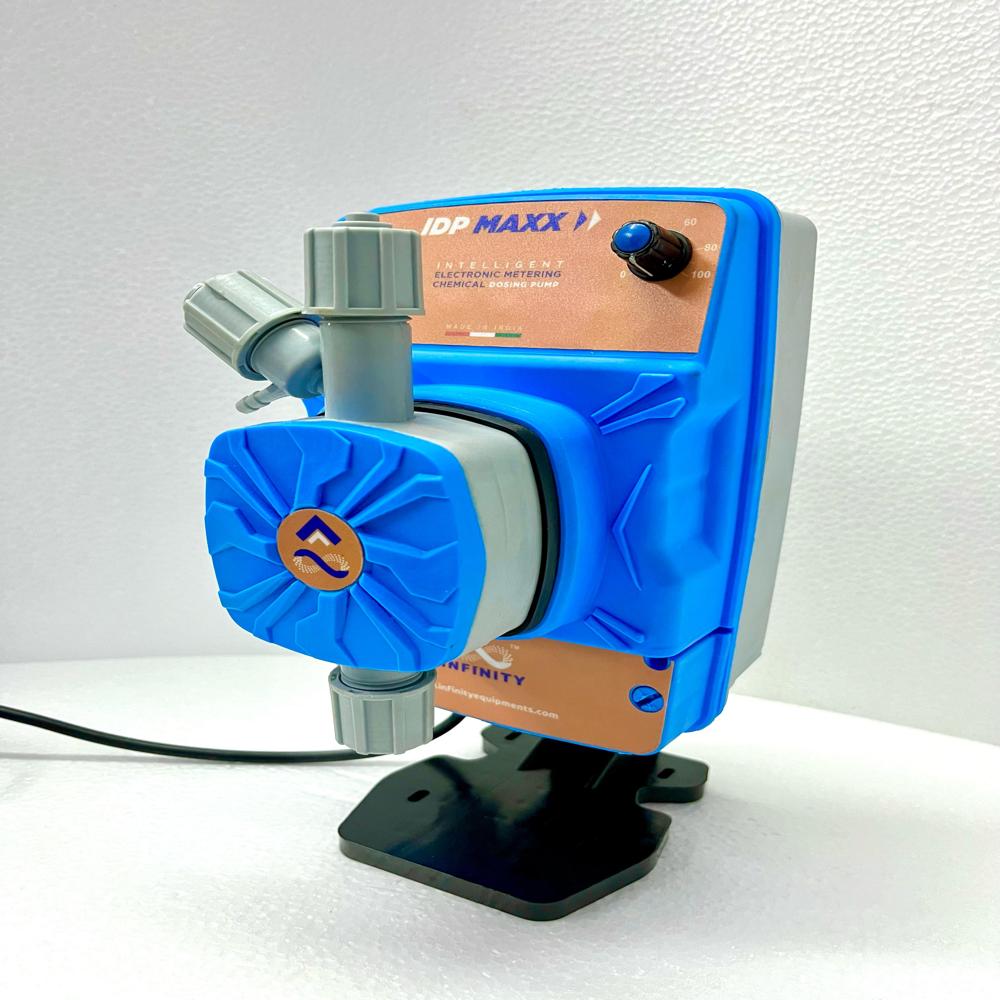

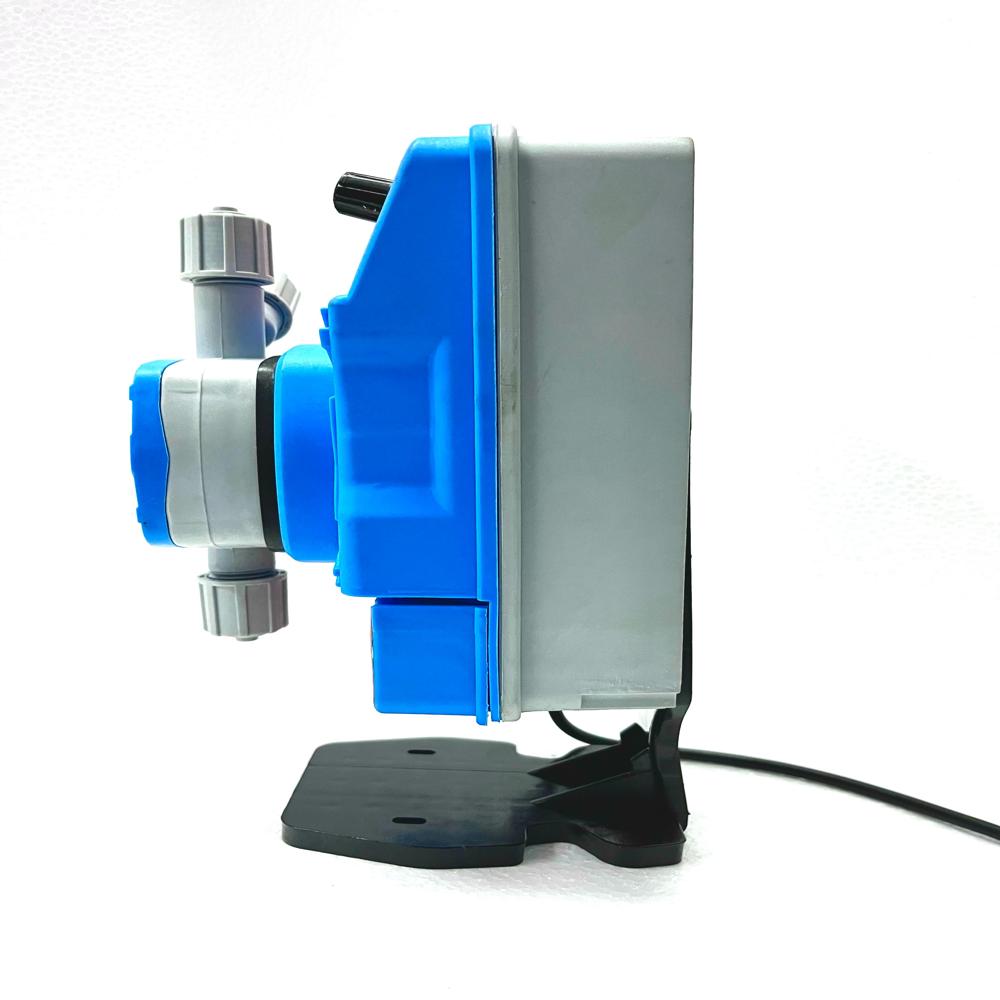

IDP20 Maxx 20 LPH DOSING PUMP

About IDP20 Maxx 20 LPH DOSING PUMP

The IDP MAXX 20 LPH Chemical Dosing Pump by Infinity Equipments is an intelligent, electronically operated diaphragm metering pump designed for accurate and consistent chemical dosing in industrial and water treatment applications.

This pump delivers precise flow control up to 20 LPH, ensuring stable dosing even under fluctuating pressure conditions. The compact and rugged design, combined with corrosion-resistant wetted parts, makes it suitable for continuous operation with a wide range of chemicals including acids, alkalis, disinfectants, and treatment chemicals.

The IDP MAXX series is ideal for users looking for high accuracy, low maintenance, and reliable performance, manufactured proudly in India.

Technical Specifications

• Brand: Infinity

• Model: IDP MAXX

• Type: Electronic Diaphragm Chemical Dosing Pump

• Dosing Capacity: Up to 20 LPH

• Maximum Pressure: Up to 7 Bar

• Operating Mode: Knob / Electronic Control

• Power Supply: 230V AC, 50 Hz

• Diaphragm Material: PTFE

• Pump Head Material: PP / PVDF (Chemical Dependent)

• Seal Material: NBR / VITON

• Tube Size: 6/4 mm

• Ingress Protection: IP65

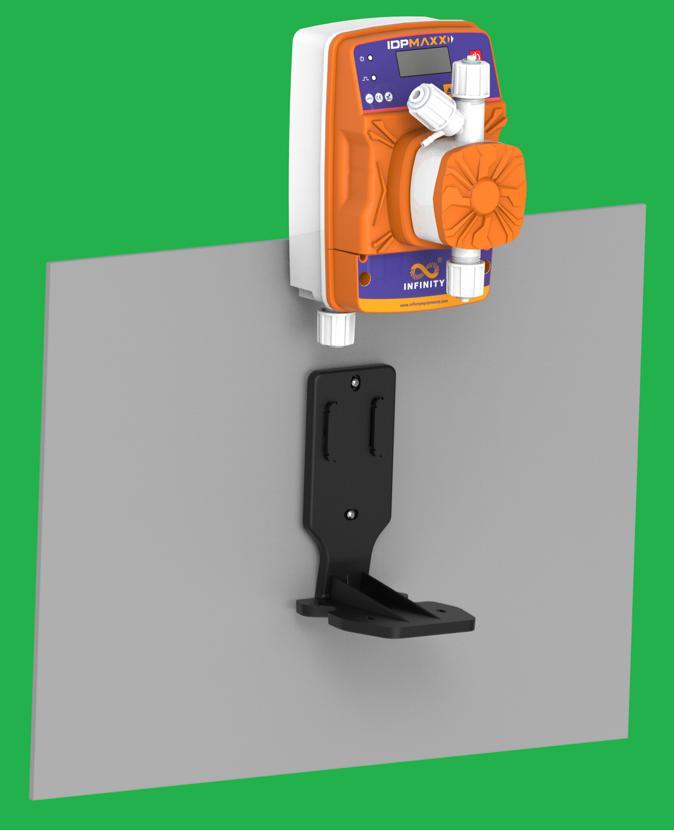

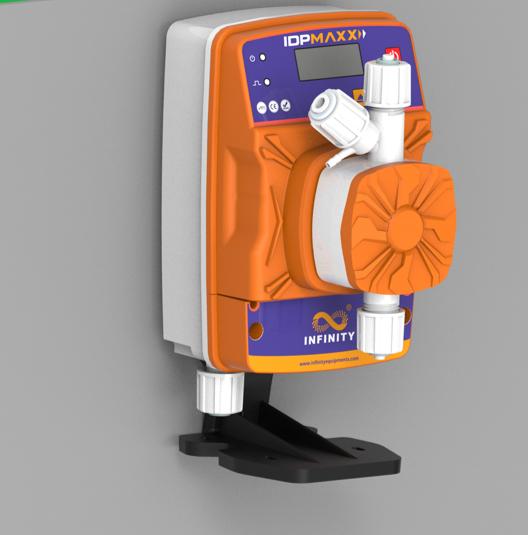

• Mounting: Wall / Base Mount

• Country of Origin: Made in India

Key Features

• Accurate and repeatable chemical dosing

• Zero leakage diaphragm design

• Suitable for acidic and basic chemicals

• Compact, robust, and industrial-grade construction

• Low noise and vibration operation

• Easy flow adjustment using control knob

• High chemical resistance wetted parts

• Long service life with minimal maintenance

• Designed for continuous duty applications

Applications

• Water Treatment Plants (WTP)

• Sewage & Effluent Treatment Plants (STP / ETP)

• Reverse Osmosis (RO) Systems

• Chemical Industries

• Cooling Towers & Boilers

• Drinking Water Disinfection

• Swimming Pool Chemical Dosing

• Pharmaceutical & Process Industries

Scope of Supply

• IDP MAXX Chemical Dosing Pump

• Suction Filter with Foot Valve

• Injection Check Valve

• Suction & Discharge Tubing

• Mounting Stand

• Operation & Maintenance Manual
