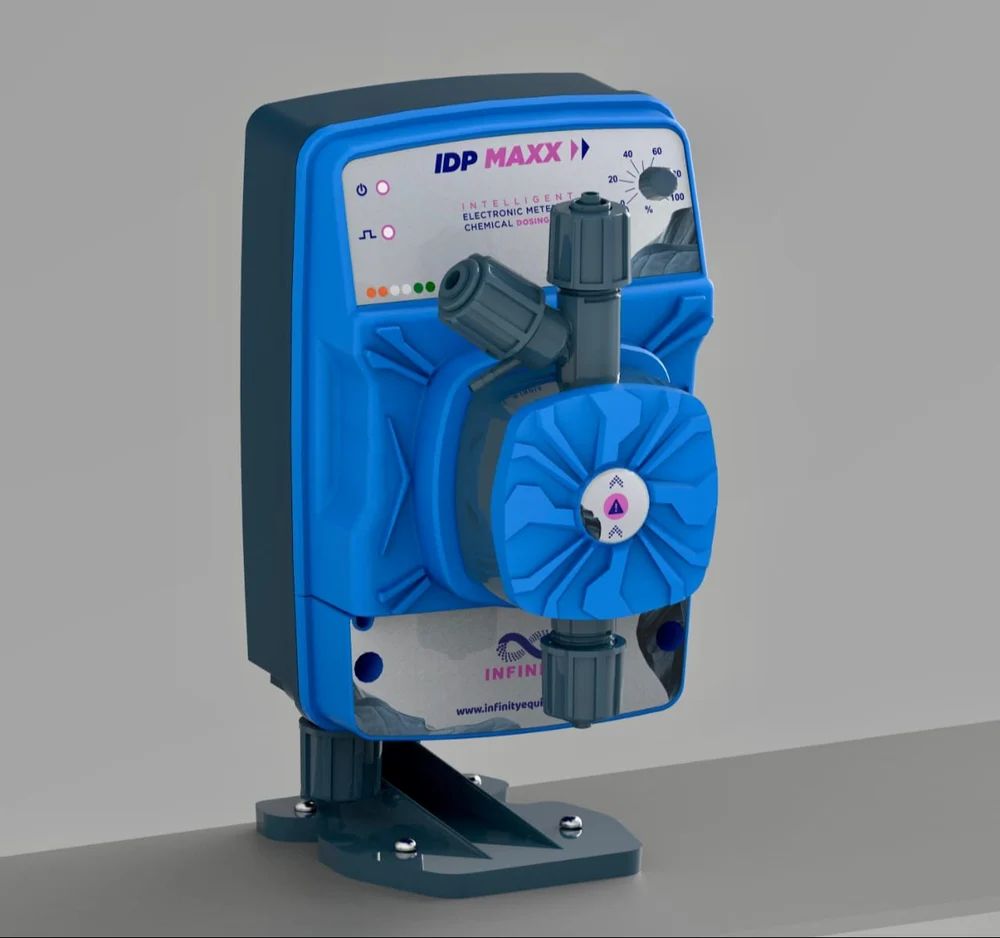

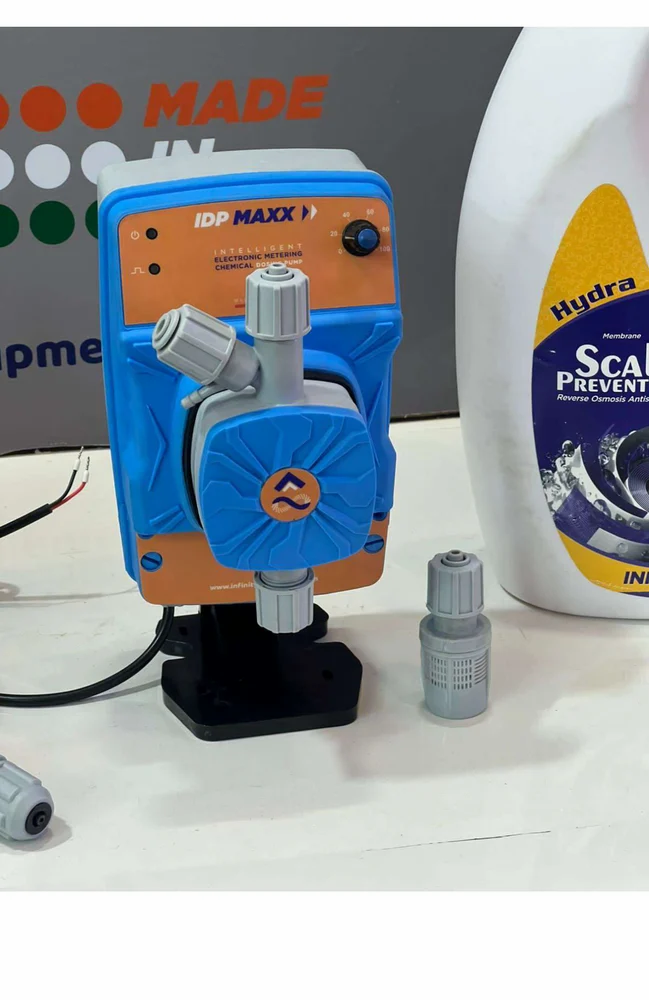

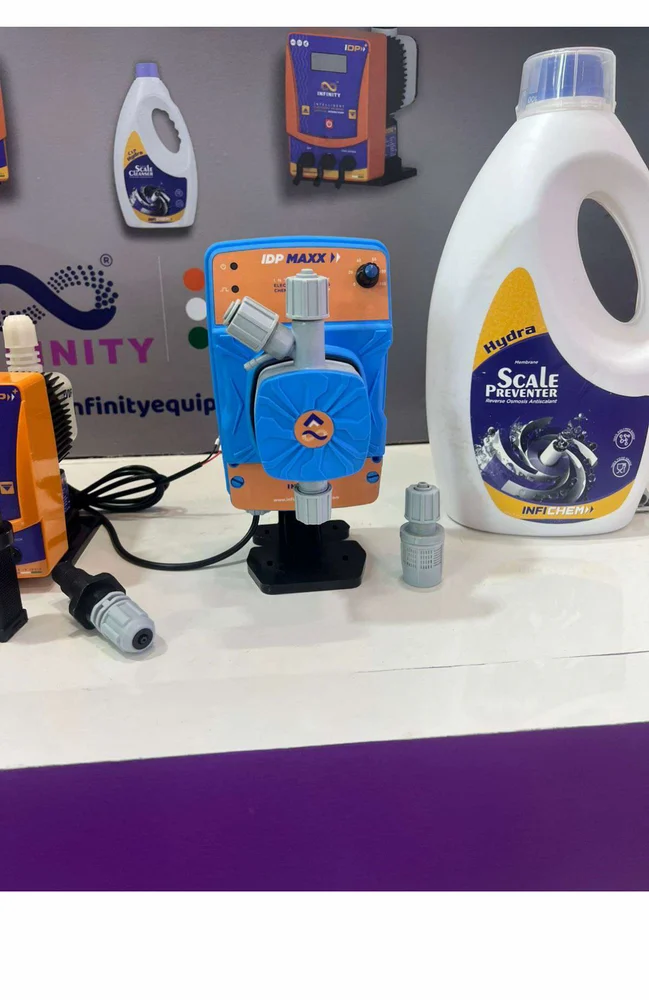

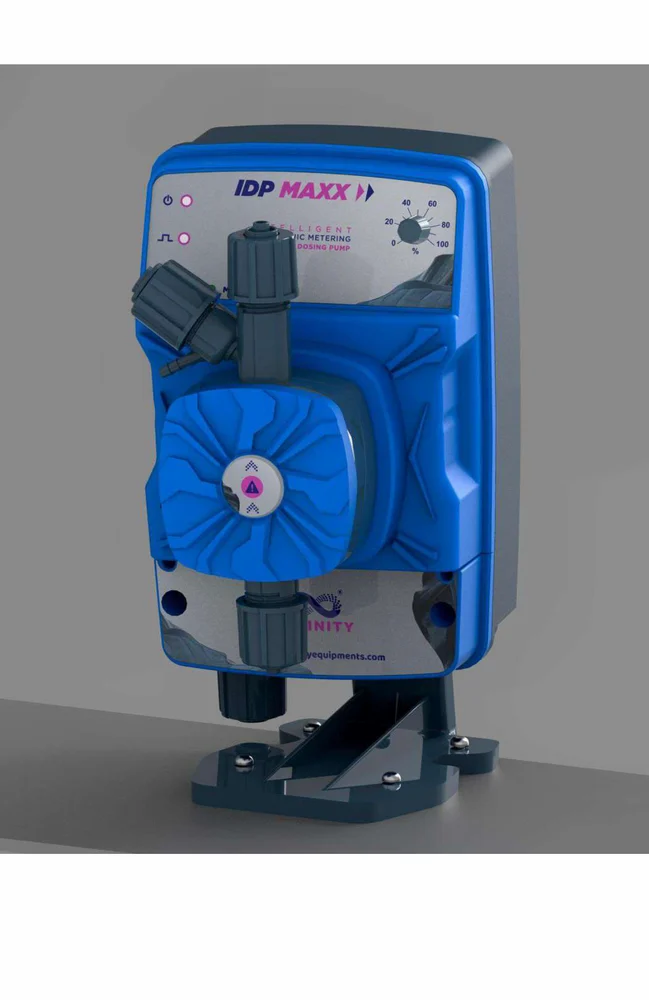

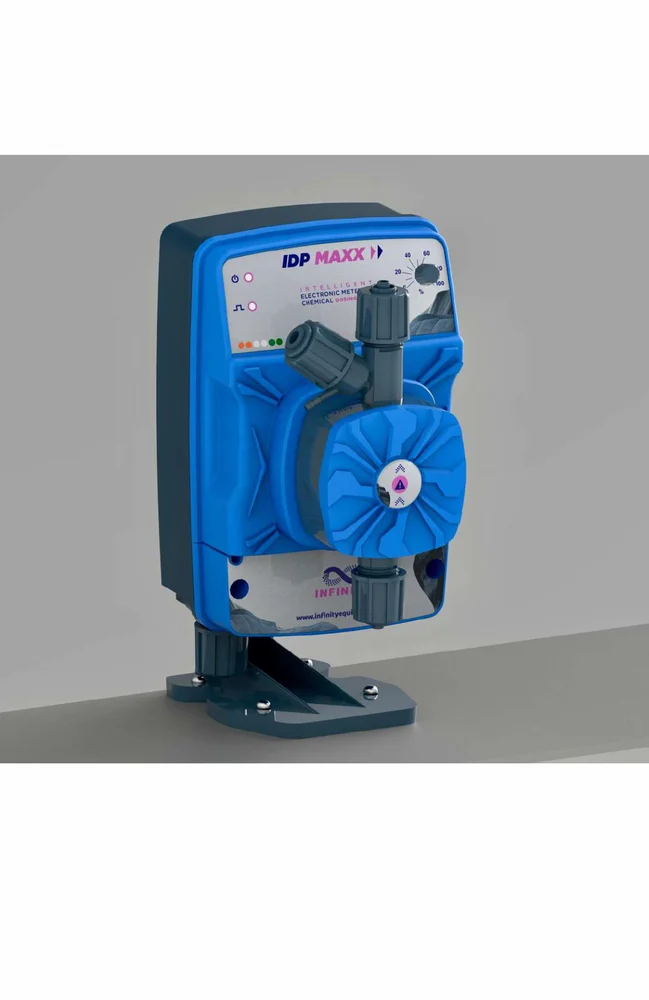

IDP20 Maxx 20 LPH DOSING PUMP

Name: IDP20 Maxx 20 LPH DOSING PUMP
Brand: INFINITY AQUALOGY
Price: 18000.0 INR
Availability: InStock

Price 18000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

IDP20 Maxx 20 LPH DOSING PUMP Specification

Flow Rate
20 LPH

Usage
Industrial / Commercial

Accessories
Suction & Discharge Tubing, Injection Valve, Foot Valve

Features
High Chemical Compatibility, Adjustable Flow, Low Power Consumption, Compact Design

Technology
Electromagnetic Solenoid

Type
Dosing Pump

Material
Polypropylene (PP)

Purifying Function
Chemical Dosing

Power
35 W

Valve Type
Ball Valve

Installation Type
Wall Mount

Temperature
5C to 50C

Water Source
Raw/Industrial Water

Dimension (L*W*H)
220 x 185 x 130 mm

Voltage
230 V AC

Weight (kg)
3.2 kg

Application
Water Treatment, ETP, STP, Chemical Dosing

Mounting Type
Panel / Wall

Capacity
20 LPH (Litres Per Hour)

Noise Level
< 60 dB

Electrical Protection
IP65 Rated Enclosure

Control
Manual Stroke Control

Inlet/Outlet Connection Size
6 x 8 mm

Suction Lift
Up to 1.5 meters

Diaphragm Material
PTFE (Teflon)

Frequency
50 Hz

Max Pressure
6 kg/cm2

Power Supply Cable
2 meters long

Stroke Adjustment
0-100% Manual

Pump Head Material
Reinforced Polypropylene

IDP20 Maxx 20 LPH DOSING PUMP Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1000 Per Month

Delivery Time
7 Week

About IDP20 Maxx 20 LPH DOSING PUMP

Usage/Application	Chemical Dosing
Pump Type	Diaphragm Solenoid driven
Suction/Discharge Tubing	6/9mm LDPE
Power Source	Electric
Material(MOC)	PP / PVDF
Discharge Pressure	8 bar maximum
Maximum Discharge Flow	52 LPH @8 bar
Phase	220V AC
Warranty	1 year
Installation Service	No
I Deal In	New Only
OPERATING TYPE	Analog (Knob) Operated
Head, injecon & Foot valv	PP GF/N GF
MOC METEL PARTS	Plunger Copper Insulaon Class
SOLUTION COMPATIBILITY	To Dose Low And Average Concentrated Ph Soluon.
sound	dB <60
Country of Origin	Made in India
Max Flow Rate	20 LPH
Type of Pump	Manual Diaphragm

we are engaged in offering a wide range of Dosing Pumps. The offered dosing pumps are widely praised by our customers for their level switch inter-lock facility. Our workforce developed these dosing pumps by using the finest quality components & contemporary techniques. These dosing pumps have automatic voltage compensation to ensure dosing consistency.

Robust Performance and Chemical Compatibility

Built from reinforced polypropylene and equipped with a PTFE diaphragm, the IDP20 Maxx endures harsh chemicals commonly used in water treatment and industrial processes. Its IP65-rated enclosure protects against dust and moisture, making it suitable for rugged operational environments. The advanced ball valve system ensures consistent dosing while maintaining long-lasting durability.

Precise Manual Control for Versatile Applications

With 0-100% manual stroke adjustment and electromagnetic solenoid technology, this dosing pump allows operators to fine-tune flow between 0 and 20 LPH to match specific treatment demands. Its compatibility with water sources ranging from raw to industrial, and straightforward installation-wall or panel mounting-makes it adaptable for diverse dosing setups in ETP, STP, or chemical processing plants.

User-Friendly Design and Efficient Operation

Weighing just 3.2 kg and measuring 220 x 185 x 130 mm, the compact IDP20 Maxx is easy to install without occupying excessive space. Its low power consumption (35W), quiet operation (<60 dB), and included accessories (tubing, injection valve, foot valve) streamline maintenance and setup, ensuring reliable, cost-effective performance.

FAQ's of IDP20 Maxx 20 LPH DOSING PUMP:

Q: How does the IDP20 Maxx dosing pump operate?

A: The IDP20 Maxx uses electromagnetic solenoid technology to precisely dispense chemicals. Manual stroke control allows adjustment of the dosing rate between 0% and 100%, enabling flow rates from 0 up to 20 litres per hour based on treatment requirements.

Q: What types of chemicals can this dosing pump handle?

A: Thanks to its reinforced polypropylene pump head and PTFE (Teflon) diaphragm, the IDP20 Maxx is resistant to a wide range of aggressive chemicals, making it suitable for most compounds used in water treatment, chemical dosing, and industrial processes.

Q: When is it recommended to use the IDP20 Maxx pump?

A: This dosing pump is ideal for applications requiring accurate chemical dosing, such as in effluent treatment plants (ETP), sewage treatment plants (STP), industrial water management, and commercial chemical dosing systems.

Q: Where can the IDP20 Maxx dosing pump be installed?

A: The pump is designed for wall or panel mounting and is IP65-rated, so it can be safely installed in both indoor and outdoor environments exposed to dust or water. Its compact size allows placement in confined spaces.

Q: What accessories are included with the IDP20 Maxx?

A: The packaging includes suction and discharge tubing, an injection valve, and a foot valve to streamline installation and ensure the pump is ready for immediate use.

Q: How does the manual stroke adjustment benefit users?

A: Manual stroke adjustment empowers users to precisely control the dosing volume, allowing adaptation to changing process requirements and minimizing wastage, thus ensuring operational efficiency.

Q: What are the key benefits of using this dosing pump?

A: The IDP20 Maxx offers high chemical compatibility, easily adjustable flow rate, low energy consumption, quiet performance, and a maintenance-friendly design, making it a dependable choice for industrial and commercial dosing needs.
