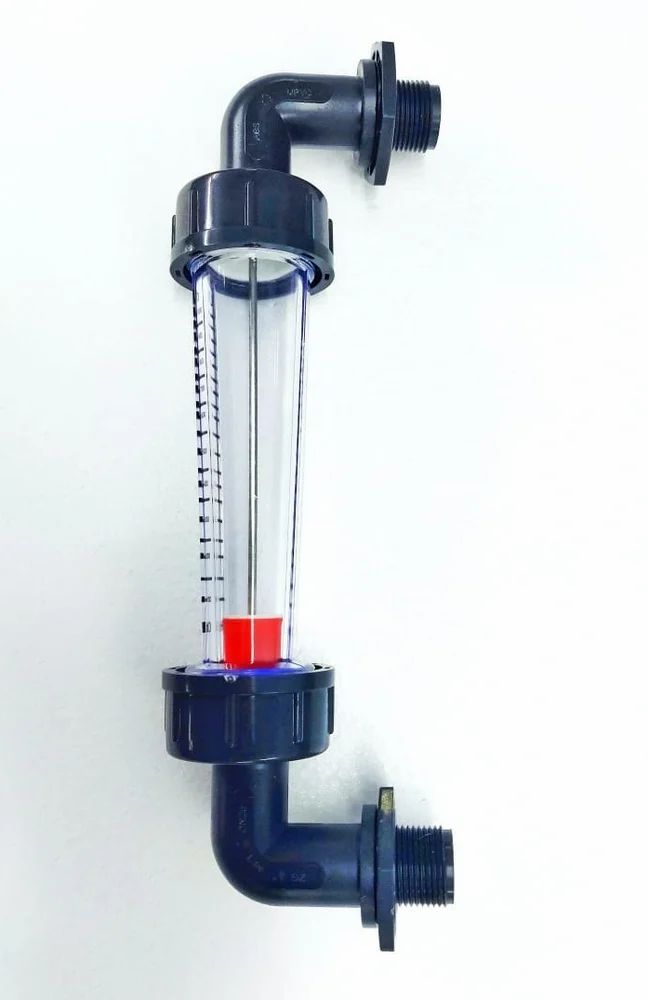

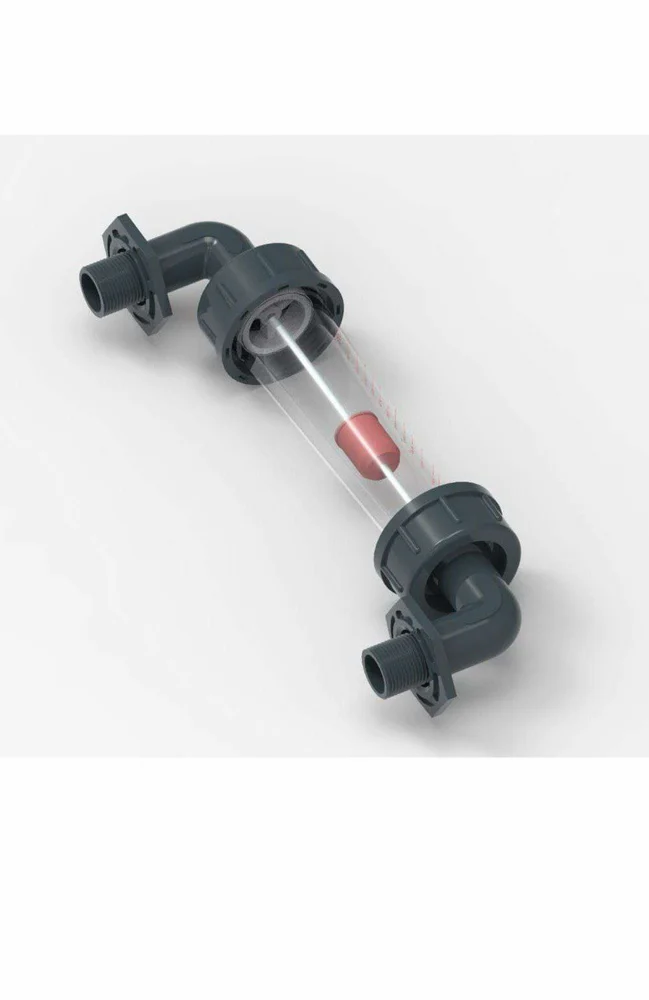

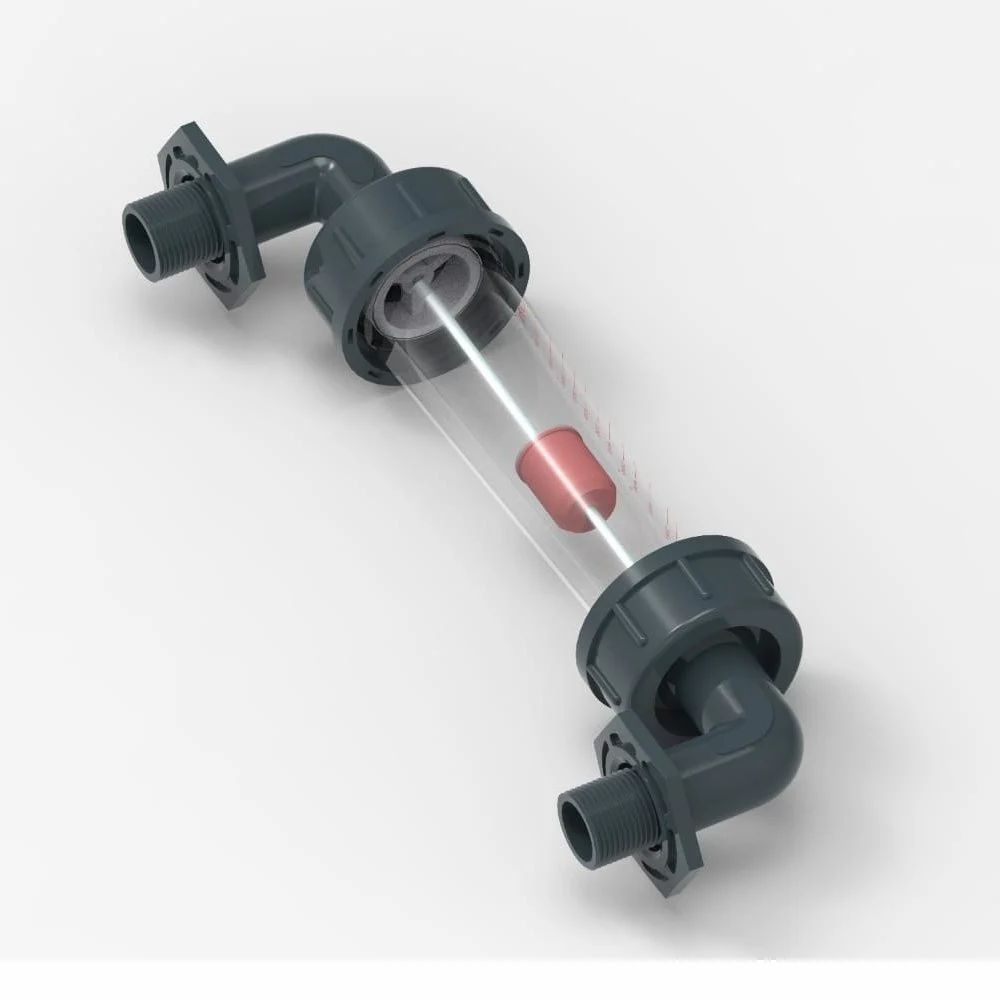

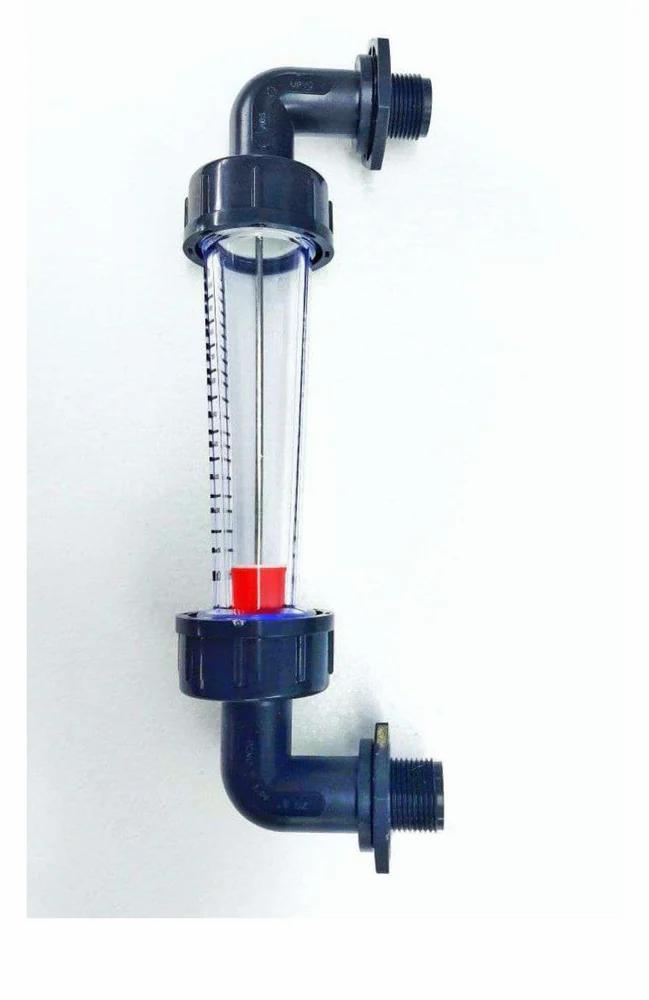

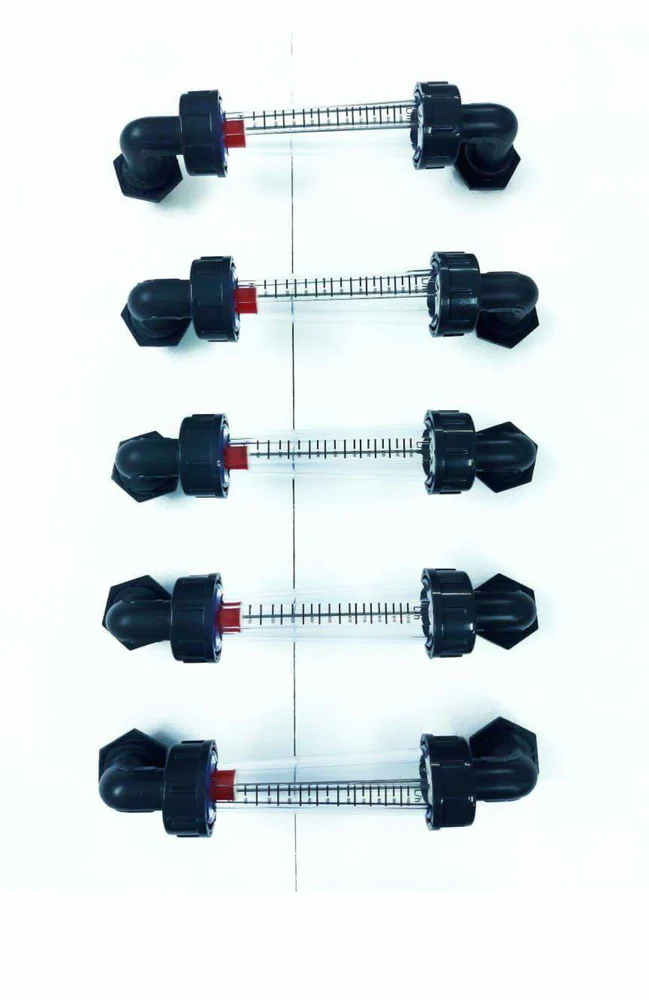

Flowtech Glass Tube Rotameters

Name: Flowtech Glass Tube Rotameters
Brand: INFINITY AQUALOGY
Price: 1199.0 INR
Availability: InStock

Price 1199.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Flowtech Glass Tube Rotameters Specification

Features
High Accuracy, Resistant to Corrosion, Easy to Read Scale, Low Pressure Drop

Flow Rate
2.5 LPH to 10,000 LPH (Water), 0.1 Nm3/hr to 140 Nm3/hr (Air)

Accessories
Scale, Float, End Connections, Valve (Optional)

Technology
Variable Area Flow Measurement

Usage
Flow Measurement of Liquids and Gases

Type
Glass Tube Rotameter

Material
Borosilicate Glass, SS, MS, PTFE

Power
No Power Required (Mechanical Device)

Valve Type
Optional Integral or Remote Valve

Installation Type
Vertical Mounting

Temperature
Max up to 150C

Water Source
Compatible with Water, Air, and Other Liquids/Gases

Dimension (L*W*H)
Customized as per Model

Weight (kg)
Depends on Model (Approx. 2-5 kg)

Application
Chemical, Pharmaceutical, Water Treatment, Industrial Process

Capacity
Varies by Model

Mounting Type
Panel/Field Mounting

End Connection
Flanged/Threaded (SS/MS/PTFE/PP as per requirement)

Protection Class
IP-65 (for Electronic/Alarming Models)

Indicator
Direct Reading Scale Marking

Accuracy
2% of Full Scale

Visibility
360 Full View of Float

Operating Principle
Variable Area Principle

Float Material
SS316 / PTFE / PVC / Glass / as per fluid compatibility

Compliance
Conforms to International Standards

Scale Material
Engraved / Printed Polycarbonate or Aluminium

Calibration
Factory Calibrated to Standard Fluids

Pressure Rating
Max up to 10 kg/cm2

Flowtech Glass Tube Rotameters Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
7 Days

About Flowtech Glass Tube Rotameters

Range Ability	10000 LPH
Usage/Application	Laboratory Use
Display Type	Analog
Maximum Temperatures	50 Degree Celsius
Operating Pressure	12 kg/cm2

We INFINITY AQUALOGY founded in the year 2010, are a renowned firm that is engaged in manufacturing a wide assortment of Dosing pump, RO Control Panel,Solenoid Valve, Electro Magnatic Flow Meter, Ph Meter, Orp Meter , Flow Meter, Rotameters, Dosing Pump, Multi Port Valve, UPVC Bag Filter Housings, Distribution System for FRP Vessel, UPVC Cartridge Filter Housings, PP Filter Housing etc. We have a wide and well functional infrastructural unit that is situated at Pune Maharashtra.

High Accuracy and Durability

Flowtech Glass Tube Rotameters deliver superior measurement precision-up to 2% of full scale-making them ideal for processes requiring exact control over liquid or gas flow. Manufactured from high-quality materials like borosilicate glass, stainless steel, and PTFE, these rotameters withstand harsh industrial environments and are resistant to chemical corrosion, ensuring long-term durability.

Versatile and Wide Application Range

Designed for flexibility, these rotameters can measure a broad flow range (2.5 LPH to 10,000 LPH for water, 0.1 Nm3/hr to 140 Nm3/hr for air) and are suitable for use in chemical, pharmaceutical, water treatment, and various industrial process applications. Customizable end connections and float materials allow tailoring to specific process requirements and fluid compatibilities.

Easy Installation and Maintenance

The vertical mounting design, along with panel or field installation options, ensures straightforward setup and maintenance. The direct-reading scale and 360 float visibility enhance usability, while the factory calibration provides reliable operation from the start. Optional integral or remote valves further optimize flow control within your system.

FAQ's of Flowtech Glass Tube Rotameters:

Q: How does the Flowtech Glass Tube Rotameter function?

A: The rotameter operates on the variable area principle, where fluid flow lifts a float within a calibrated glass tube. The float's position, visible through the 360 glass tube, corresponds directly to the flow rate that can be read on the engraved or printed scale.

Q: What fluids and gases can be measured with this rotameter?

A: This rotameter is engineered to measure a wide variety of liquids and gases, including water and air, as well as chemicals and other industrial process media. Material options for the float and end connections ensure compatibility with most fluids.

Q: When should I choose flanged or threaded end connections?

A: Select flanged connections for secure, leak-proof installation in larger pipes and high-pressure scenarios. Threaded connections are suitable for compact systems, smaller pipes, or applications where quick assembly or disassembly is required.

Q: Where is mounting recommended for optimal performance?

A: Vertical mounting is recommended for accurate operation, whether panel-mounted or installed directly in the field. Ensure the installation follows the manufacturer's guidelines to maintain measurement accuracy and visibility.

Q: What is the installation process for this rotameter?

A: Begin by ensuring the pipeline is clean and correct in orientation. Mount the rotameter vertically using either panel or field supports, connect the required flanged or threaded ends, and secure all fittings. Calibration is factory-set, so only minimal setup is required prior to operation.

Q: How easy is it to maintain and read this rotameter?

A: The device is designed for straightforward maintenance, with easily accessible components and optional valves. Its direct-reading scale and complete float visibility simplify usage and reduce the likelihood of operator error.

Q: What are the main benefits of using this rotameter in industrial applications?

A: Key advantages include high accuracy, low pressure drop, compliance with international standards, corrosion resistance, and the ability to work without external power. These features yield dependable, cost-effective flow measurement for a wide range of industries.
